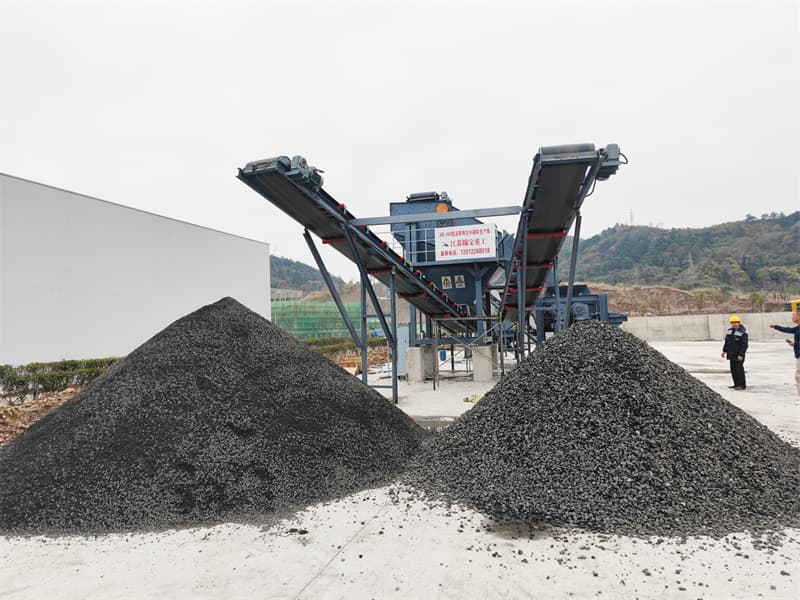

RAP Asphalt Reclaimed Material Crushing and Screening Equipment
With a large amount of asphalt waste (RAP) being reused, more and more customers are paying attention to equipment in the asphalt recycling field, and the demand for related equipment has doubled. As a rising star in the field of asphalt recycling in the industry, our company's （Jiangsu XIBAO Heavy Industry） independently developed recycling products are highly favored by customers.
From this year's equipment sales data, it can be seen that Xibao Heavy Industry's XB series asphalt waste crushing and screening equipment is selling exceptionally well. As of now, it has been put into use in provinces and cities across the country such as Zhejiang, Jiangsu, Anhui, Xinjiang, Hubei, Beijing, and has been exported to overseas countries such as Vietnam, Greece, Thailand, to assist in the recycling and utilization of RAP and achieve resource regeneration.
What are the advantages of XBM series roller crushing and screening equipment?
Xibao Heavy Industry has developed a specialized crushing and screening product based on its rich experience in the design of asphalt plant mixed hot regeneration equipment and the unique nature of RAP material acquisition methods. The equipment adopts flexible separation technology and high-frequency screening technology, ensuring the grading control requirements in the production process of high admixture ratio RAP mixture. The flexible crushing and screening method avoids secondary damage to the RAP grading, and the high-frequency screening technology can accurately screen RAP below 4.75mm, ensuring precise control of the mixture proportion
RAP flexible crushing and screening "3-step method"

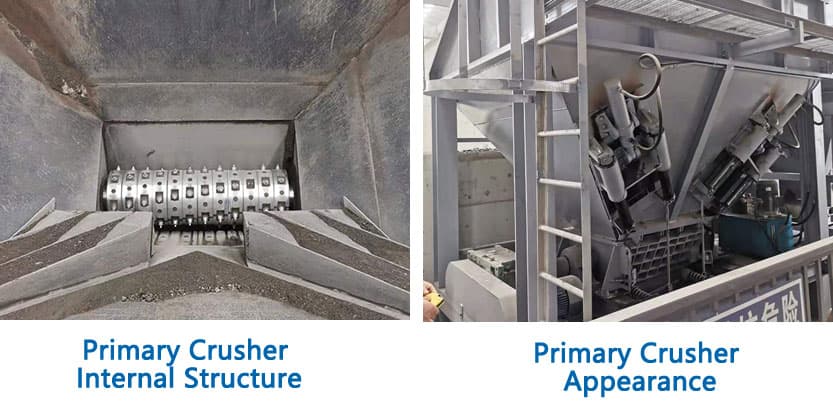

1. Primary single roller flexible separation
The crushing roller of the single roller primary crusher works in conjunction with the hydraulic driven pushing device, resulting in high crushing efficiency. The combination of low speed and movable buffer plate can achieve flexible separation. The wear-resistant parts on the crushing roller use the standard breaking blade of an asphalt milling machine, which has good wear resistance and is easy to replace.

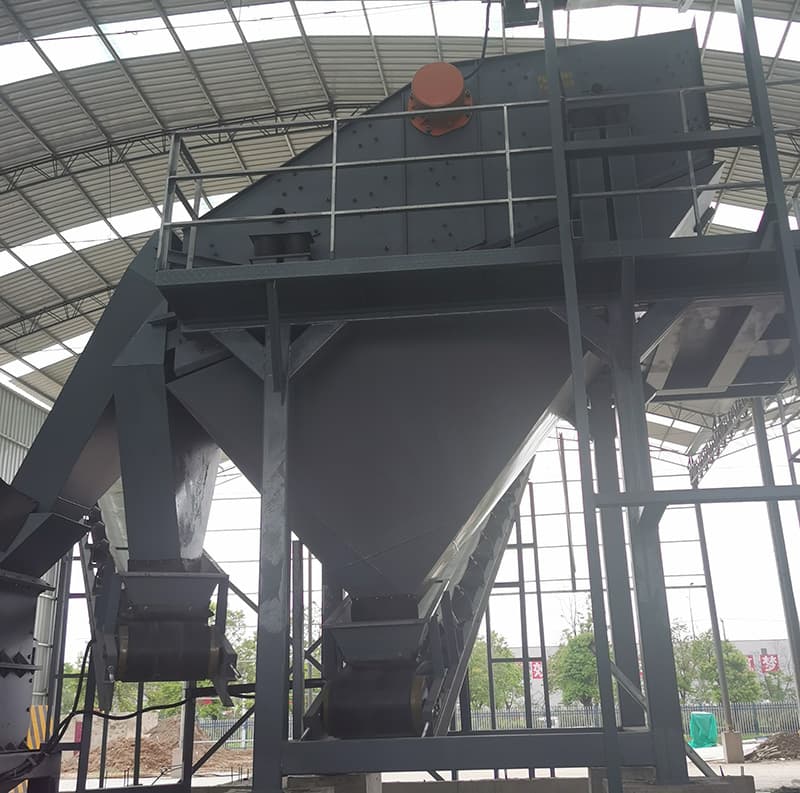

2. Classification system
The equipment uses a high-frequency vibration motor as the driving force to drive the screen to vibrate (the screen body does not move), solving the problem of RAP material blocking below 4.75mm and achieving high-speed tapping of materials. This structure combines conventional vibrating screens and vibrating screens into one, and a vibrating screen can screen three types of materials, reducing equipment occupation and saving costs.

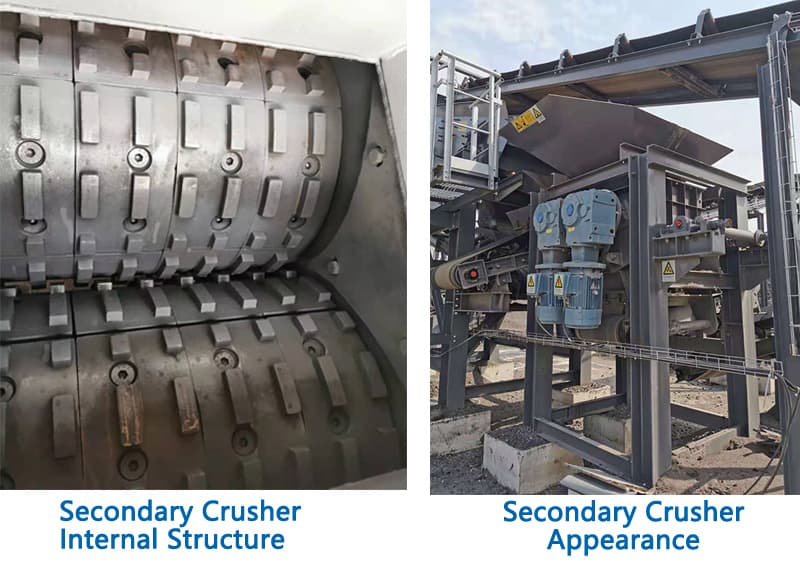

3. Secondary roller flexible separation
The double roll secondary crusher is equipped with two sets of crushing rollers arranged in a cross manner, one of which is equipped with a spring tensioning device. The gap between the crushing rollers can be adjusted through the spring tensioning device to adjust the particle size and output of the crushed material. Compared with hammer crushing and impact crushing, roller crushing has less damage to the grading of RAP raw aggregate. The roller speed is low and the impact of the crushing method is small, extending the service life of the equipment. At the same time, there is almost no dust generated during on-site work.

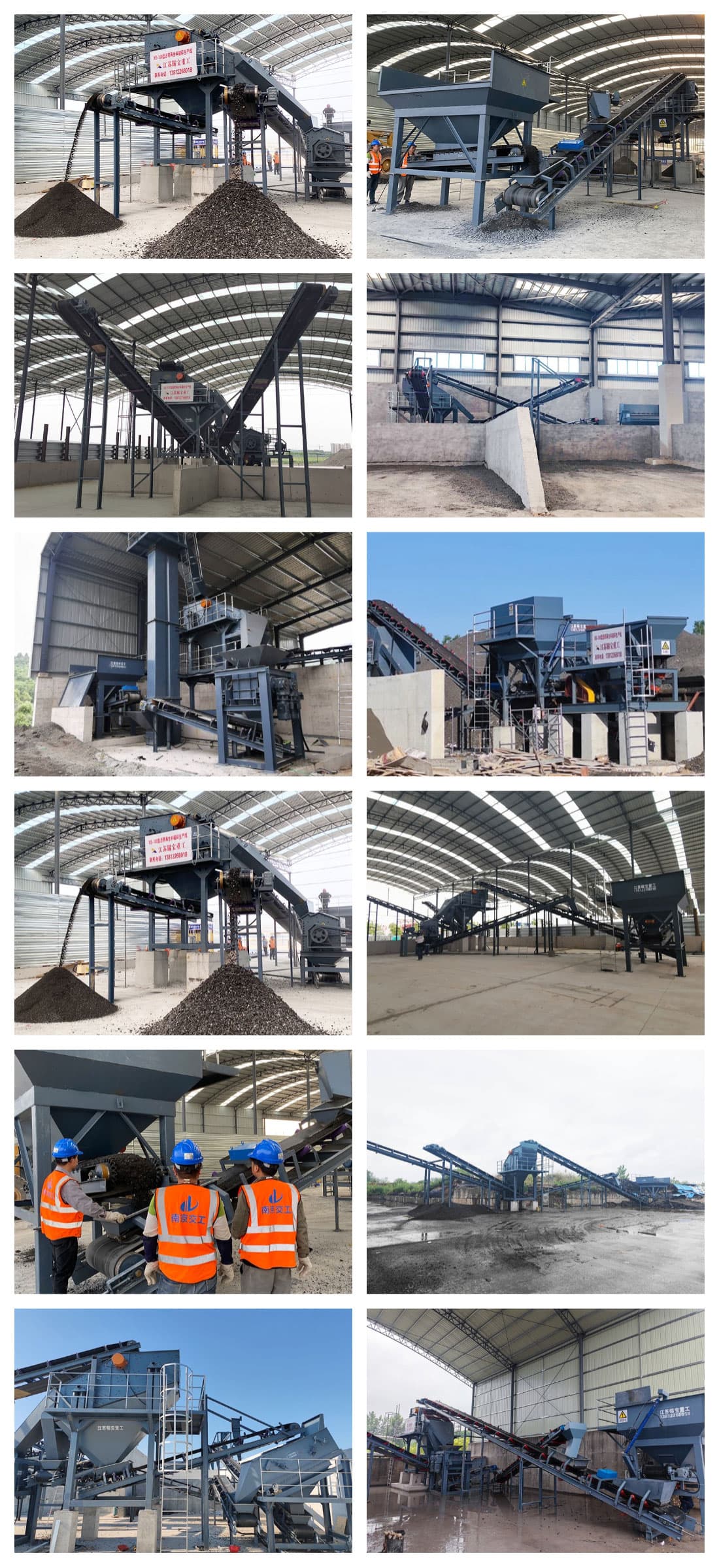

RAP Asphalt Reclaimed Material Crushing and Screening Equipment Customer Stories
